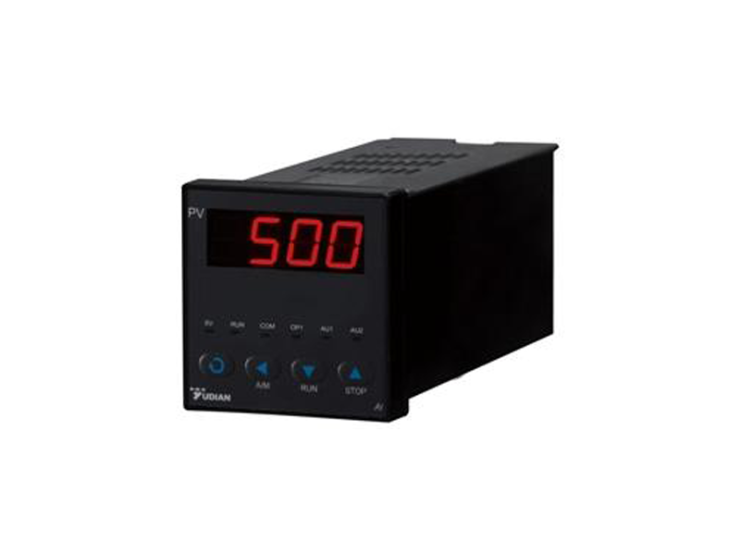

Temperature & Process Indicators

Programmable and modular inputs, supporting multiple input types of thermocouples, RTDs, voltage/current and two-wire transmitters. Suitable for measuring and displaying temperature, pressure, flow, level, humidity, etc with measurement accuracy of 0.2% full scale (0.3% full scale for AI-500).

Category: Temperature & Process Indicators

Programmable and modular inputs, supporting multiple input types of thermocouples, RTDs, voltage/current and two-wire transmitters. Suitable for measuring and displaying temperature, pressure, flow, level, humidity, etc with measurement accuracy of 0.2% full scale (0.3% full scale for AI-500).

Programmable and modular inputs, supporting multiple input types of thermocouples, RTDs, voltage/current and two-wire transmitters. Suitable for measuring and displaying temperature, pressure, flow, level, humidity, etc with measurement accuracy of 0.2% full scale (0.3% full scale for AI-500).
Single display window to set parameters and alarm points. Various dimensions are selectable.
Supports up to 4 loops of alarms including 2 loops of high limit alarms plus 2 loops of low limit alarms. Alarms can be outputted to different relays or share one.
With functions of digital calibrating, digital filtering, and thermocouple cold junction auto compensating, it is free of maintenance and easy operated.
Supports RS485 communication interface, able to communicate with computers.
Retransmission function, cooperating with X3 high precision current output module (0.2%FS), can retransmit temperature with accuracy of 0.3%FS.
High quality and performance hardware design, using high performance tantalum capacitor or ceramic capacitor. Compared to competing models, it consumes less electricity, experiences less temperature shifting, provides higher stability and reliability and can work in a wider range of temperature. The power and I/O terminals have passed the anti-interference test of 4KV/5KHz burst of pulses.

Input type : Thermocouple: K, S, R, T, E, J, B, N, Pt100, Cu50, 0~5V, 1~5V, 0~1V, 0~100mV, 0~60mV, 0~20mV, 0~20mA, 4~20mA
Alarm function : High limit, low limit, second high limit and second low limit
Retransmission : When X3 or X5 current module is installed in OUTP slot, process value (PV) can be retransmitted to standard current with maximum load resistor 500 ohm.
Communication : RS-485/RS-232
Transmitter Supply : DC 10V/12V/24V
Measurement accuracy : 0.2%FS±0.1°C (AI-700); 0.3%FS±1 (AI-500)
Temperature display resolution : 0.1°C ; Temperature is higher than 999.9°C automatically change to 1°C ; 1°C selectable (AI-700) 0.1°C for K, E, J, N, Pt100 and 1°C for S, R (AI-500)
Temperature shift : ≤0.01%FS/°C (typical value is 50ppm/°C ) (AI-700) ≤0.015%FS/°C (typical value is 75ppm/°C ) (AI-500)
Electromagnetic compatibility (EMC) : IEC61000-4-4, ± 4KV/5KHz; IEC61000-4-5, 4KV
Isolation withstanding voltage : Between power, relay contact or signal terminals ≥2300VDC; between isolated electroweak signal terminals≥600VDC
Power supply : 100~240VAC, -15%, +10% / 50-60Hz; 24VDC / AC, -15%, +10%
Power consumption : ≤5W
Operating Ambient : Temperature -10~+60°C ; humidity ≤90%RH
Front panel dimension : 96×96mm, 160×80mm, 80×160mm, 48×96mm, 96×48mm, 72×72mm, 48×48mm
Depth behind mounting surface : ≤100mm
Model no. AI-500, AI-5201, AI-700, AI-701, AI-751
